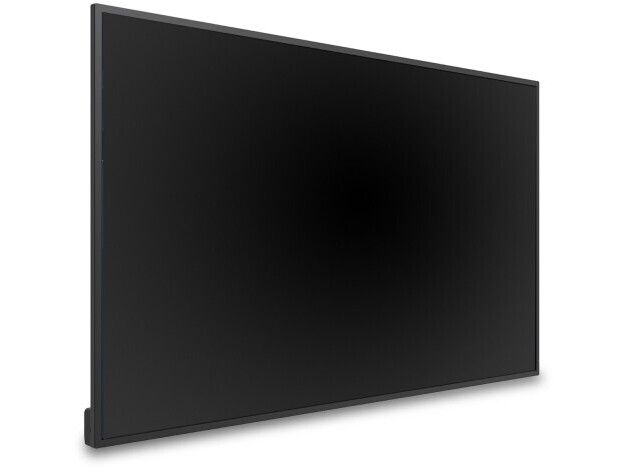

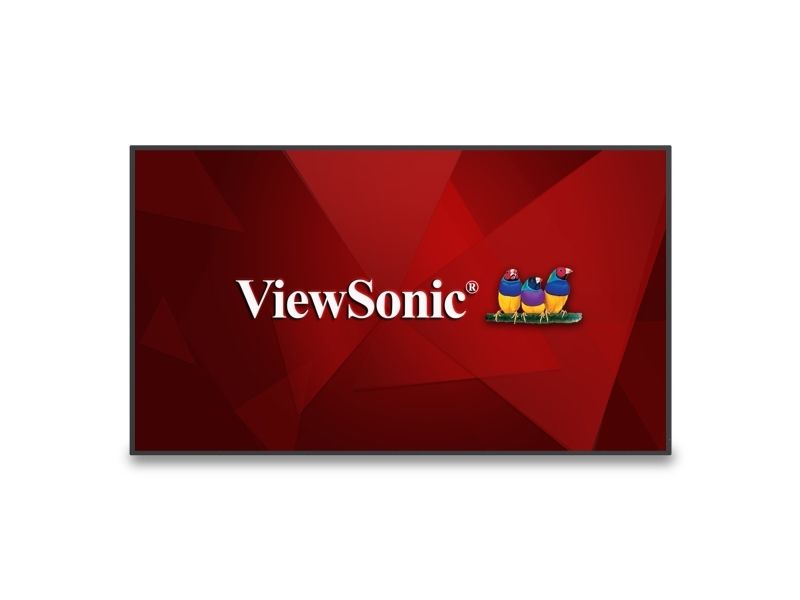

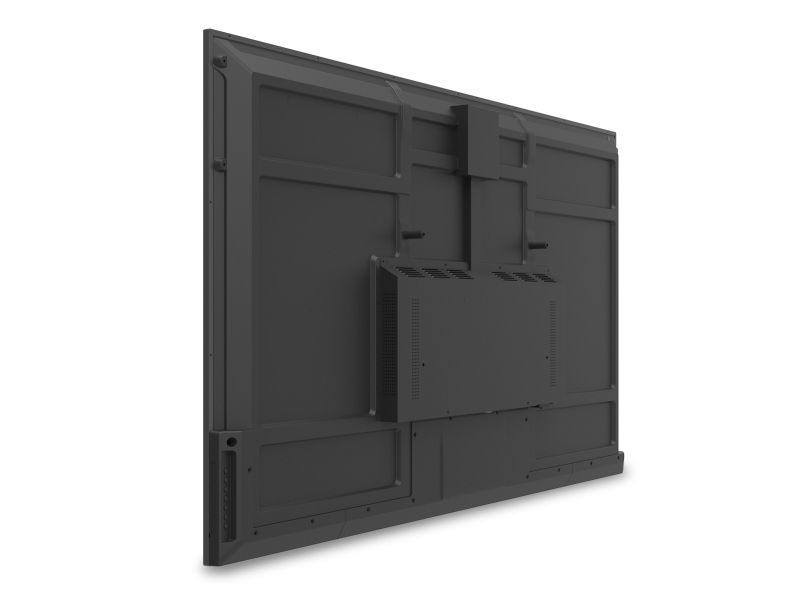

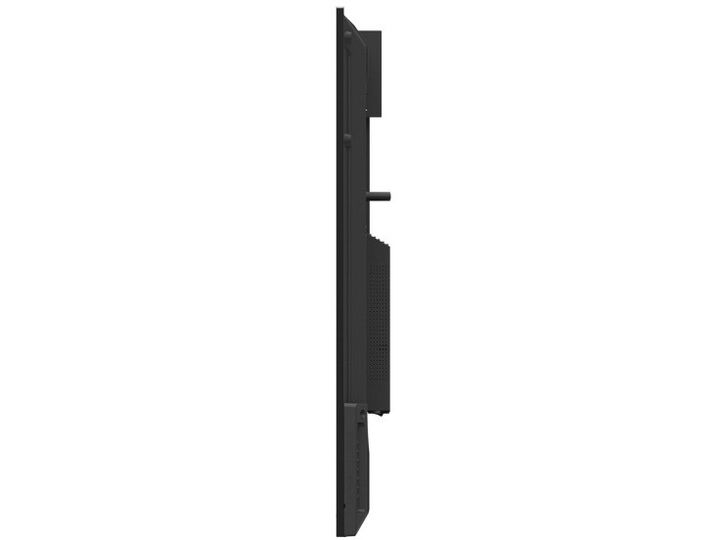

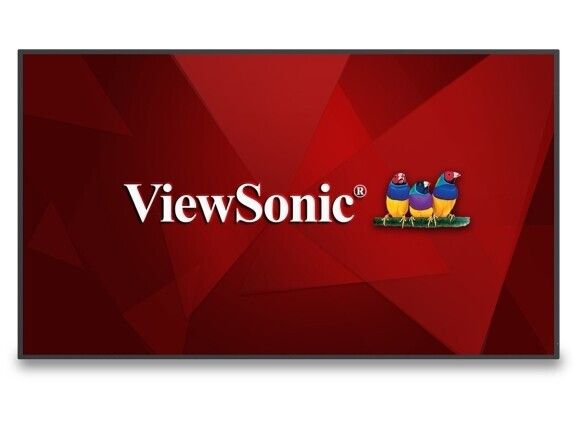

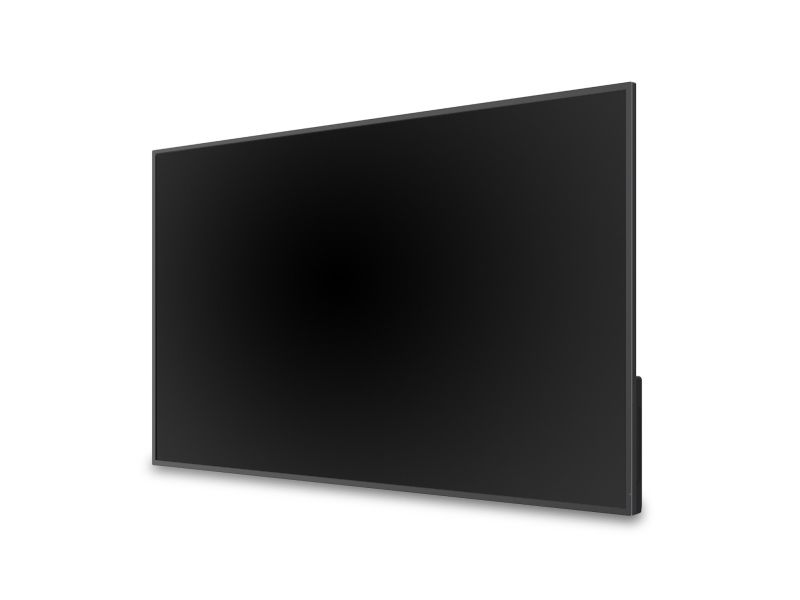

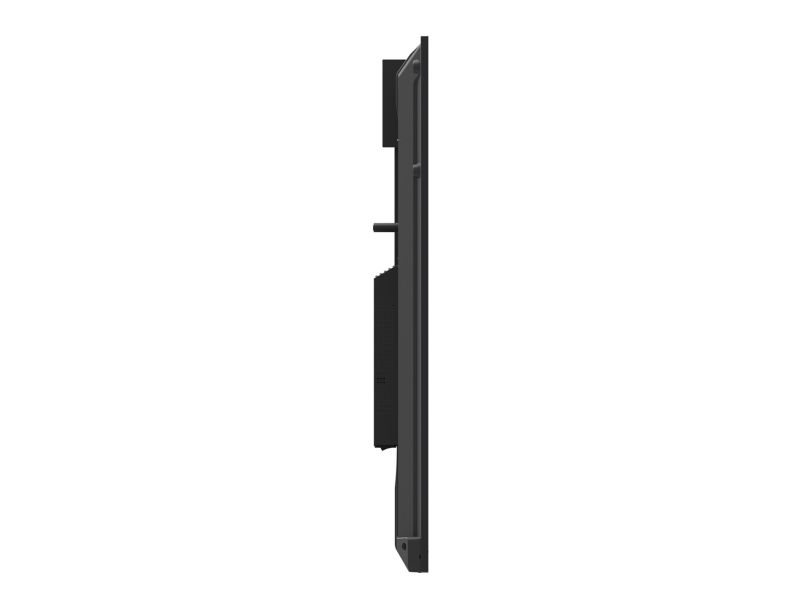

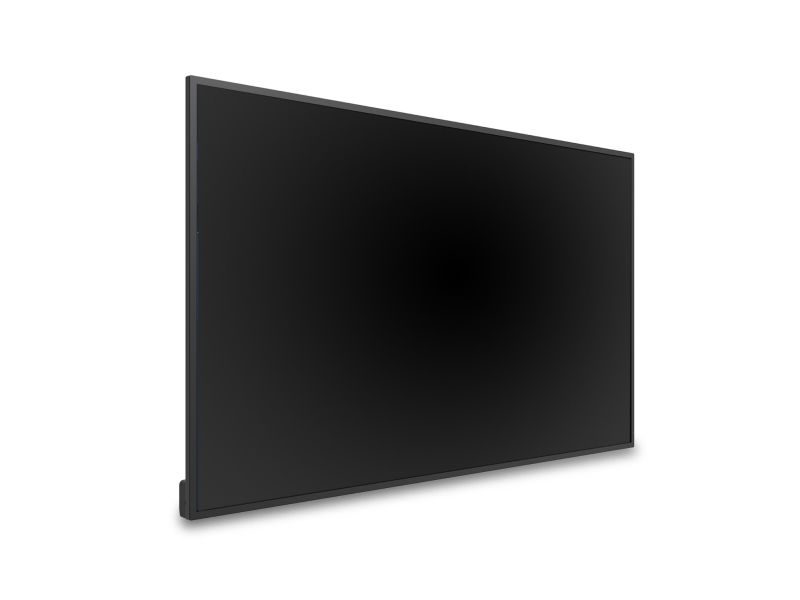

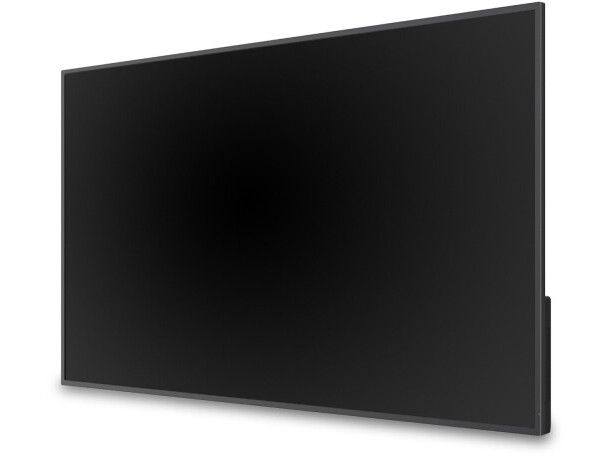

The ViewSonic® CDE5520 is a 55” premium 4K large format presentation display. With features including a razor-sharp resolution of 3840 x 2160, 450-nit high brightness, 178-degree ultra-wide viewing angles, 2 x 10W speakers, and wireless screen sharing, the display transforms meeting rooms into dynamic communications hubs. The built-in ViewBoard® screen sharing software*, ViewBoard® Cast (along with the optional ViewSonic® vCastSender app), enables both on-site and online users to participate in conferences and simultaneously share content. Equipped with twin dual-core processors, 3GB RAM, and 16GB of internal memory, the CDE5520 can play multimedia from internal storage or a USB flash drive. And with remote configuration and content management system support, the ViewSonic® CDE5520 is also suitable for a wide array of diverse signage applications. *Chrome, Android, Windows, Mac OS, and iOS compliant
Multiple Ways to Connect and Share
Connect wirelessly through your network or directly to the display. Use the ViewBoard Cast™ screen sharing software along with the web-based myViewBoard® Display app to allow up to four participants (on-site and remote) to connect and share their content regardless of what OS platform they are using (Windows, MacOS, Chrome OS, Android, iOS). In addition, AirPlay, Miracast and the optional ViewBoard Cast button all offer wireless and software-less casting options.
AV Control System Interoperability
These displays are Crestron Connected® as well as Extron and AMX certified for seamless integration. Network admins are always in control with the ability to send control signals such as on/off, switch inputs, push firmware and security updates, and get status from the display.
Centralized Device Control Manager
For IT admins, it’s tough managing the hundreds of devices and displays that live on the network. Now with myViewBoard Manager, an easy-to-use web-based application, IT can securely set up, manage and maintain all of the displays from a centralized dashboard.
Reliable 24/7 Operation Rating
Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 24 hours a day, 7 days a week. Ideal in virtually any commercial application and environment, this commercial display delivers peace of mind with its robust and durable design.
Superb and Stunning Picture Quality
With 4K resolution, high brightness and 25% high haze anti-glare glass treatment, these displays deliver bright, clear and sharp images in any indoor environment.
Powerful Secured Embedded Platform
This display can execute several tasks at once while providing smooth content playback without the need for a PC or media player. The embedded SoC provides PC-like performance and power to run apps, while hardened custom Android OS firmware protects the display from viruses and security breaches by preventing unknown sources to be installed on the system.
Bildschirmdiagonale
139,7 cm (55")
Bildschirmtechnologie
LCD
Display-Auflösung
3840 x 2160 Pixel
Helligkeit
450 cd/m²
HD-Typ
4K Ultra HD
Touchscreen
Nein
Panel-Typ
ADS
LED-Hintergrundbeleuchtungstyp
Direct-LED
Natives Seitenverhältnis
16:9
Reaktionszeit
8 ms
Kontrastverhältnis
1200:1
Kontrastverhältnis (dynamisch)
5000:1
Bildwinkel, horizontal
178°
Bildwinkel, vertikal
178°
Anzahl der Farben des Displays
1,07 Milliarden Farben
Bildschirmdiagonale (cm)
139 cm
Lebensdauer des Panels
50000 h
Wiederholfrequenz
60 Hz
Trübungsrate
25%
Oberflächenhärte
3H
Anzahl HDMI-Anschlüsse
3
DVI Anschluss
Nein
Anzahl DisplayPort Anschlüsse
0
USB Anschluss
Ja
HDMI-Version
2.1
Anzahl HDMI-Eingangsschnittstellen
2
Anzahl HDMI-Ausgangsschnittstellen
1
Anzahl der USB-Anschlüsse
3
USB-Version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB-Stecker
USB Typ-A, USB Typ-C
Anzahl Ethernet-LAN-Anschlüsse (RJ-45)
1
RS232
Ja
OPS-Modulslot
Ja
Eingebaute Lautsprecher
Ja
Anzahl eingebauter Lautsprecher
2
RMS-Leistung
20 W
Produktdesign
Digital Signage Flachbildschirm
Produktfarbe
Schwarz
Unterstützte Positionierung
Drinnen
VESA-Halterung
Ja
Ausrichtung
Horizontal/Vertikal
Bildschirmform
Flach
Panel-Montage-Schnittstelle
400 x 200 mm
Rahmenbreite (unten)
1,5 cm
Rahmenbreite (Seite)
1,5 cm
Rahmenbreite (oben)
1,5 cm
Blendfreier Bildschirm
Ja
Befestigungstyp
Wand
Zweck
Universal
Betriebszeiten (Stunden/Tage)
24/7
HDCP
Ja
HDCP-Version
2.2
Stromverbrauch (Standardbetrieb)
155 W
Stromverbrauch (Standby)
0,5 W
Stromverbrauch (max.)
250 W
AC Eingangsspannung
100 - 240 V
AC Eingangsfrequenz
50 - 60 Hz
Computersystem
Ja
Eingebauter Prozessor
Ja
Computersystem-Typ
System on Chip (SoC)
Prozessor
Amlogic T982
Prozessor-Taktfrequenz
1,9 GHz
Anzahl Prozessorkerne
4
Speicherkapazität
4 GB
Eingebautes Grafikkartenmodell
ARM Mali-G52
Interne Speicherkapazität
32 GB
Installiertes Betriebssystem
Android 11
Displaybreite
1233 mm
Display Tiefe
71,5 mm
Display Höhe
703,5 mm
Displaygewicht
13,4 kg
Gewicht
13,4 kg
Verpackungsbreite
1332 mm
Verpackungstiefe
156 mm
Verpackungshöhe
819 mm
Paketgewicht
19,5 kg
Fernbedienung enthalten
Ja
Akkus/Batterien enthalten
Ja
Mitgelieferte Kabel
AC, HDMI, RS-232, USB Typ-C
Montageset
Ja
Betriebstemperatur
0 - 40 °C
Relative Luftfeuchtigkeit in Betrieb
20 - 80%
Zertifizierung
cTUus, FCC, Energy Star 8.0, RoHS, Mexico NOM, Mexico Energy
Anzahl Produkte pro Versandkarton
1 Stück(e)
Palettenlänge (brutto)
114 cm
Palettenbreite (brutto)
145 cm
Palettenhöhe (brutto)
94,5 cm
Warentarifnummer (HS)
8528521000
Ethernet/LAN
Ja
WLAN
Nein
Ethernet LAN Datentransferraten
10,100,1000 Mbit/s
OPS-Steckplatz
1
Schnellstartübersicht
Ja
